Python Code to Plot position of planets on RA-DEC Grid

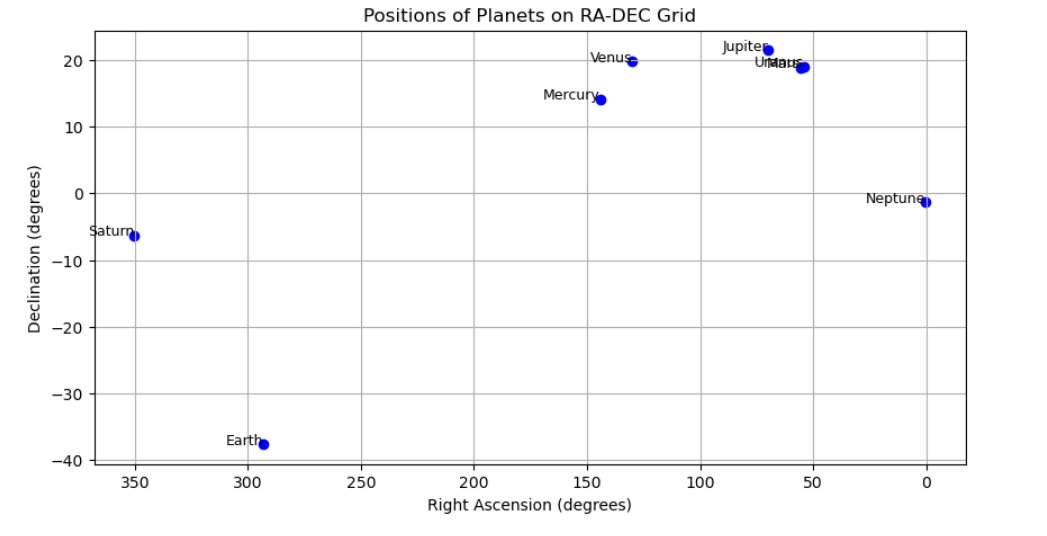

 Below is Python  Output & Code to "Plot position of planets on RA-DEC Grid".


Change the Setting parameters - Longitude, Latitude and Time.

The comments "#" gives short description of the code. You may need to install the required libraries.

***************************************************************************

from astropy.coordinates import EarthLocation, AltAz, get_sun, get_moon, solar_system_ephemeris, get_body

from astropy.time import Time

import astropy.units as u

import matplotlib.pyplot as plt


def plot_planet_positions(date_time, latitude, longitude):

    # Define observer's location

    observer_location = EarthLocation(lat=latitude*u.deg, lon=longitude*u.deg, height=0*u.m)



    # Define the time of observation

    observing_time = Time(date_time)



    # List of planets

    planets = ['mercury', 'venus', 'earth', 'mars', 'jupiter', 'saturn', 'uranus', 'neptune']



    # Lists to store RA and DEC values for each planet

    ra_values = []

    dec_values = []



    # Calculate RA and DEC for each planet

    with solar_system_ephemeris.set('builtin'):

        for planet_name in planets:

            planet = get_body(planet_name, observing_time, observer_location)

            ra_values.append(planet.ra.deg)

            dec_values.append(planet.dec.deg)



    # Plotting

    plt.figure(figsize=(10, 5))

    plt.scatter(ra_values, dec_values, color='blue')

    for i, planet_name in enumerate(planets):

        plt.text(ra_values[i], dec_values[i], planet_name.capitalize(), fontsize=9, ha='right')



    plt.xlabel('Right Ascension (degrees)')

    plt.ylabel('Declination (degrees)')

    plt.title('Positions of Planets on RA-DEC Grid')

    plt.grid(True)

    plt.gca().invert_xaxis()  # Invert RA axis to match astronomical convention

    plt.show()


# Example usage:

date_time = '2024-07-17 20:00:00'  # UTC time

latitude = 37.7749  # San Francisco, CA latitude

longitude = -122.4194  # San Francisco, CA longitude


plot_planet_positions(date_time, latitude, longitude)


***************************************************************************

Credits- ChatGPT
